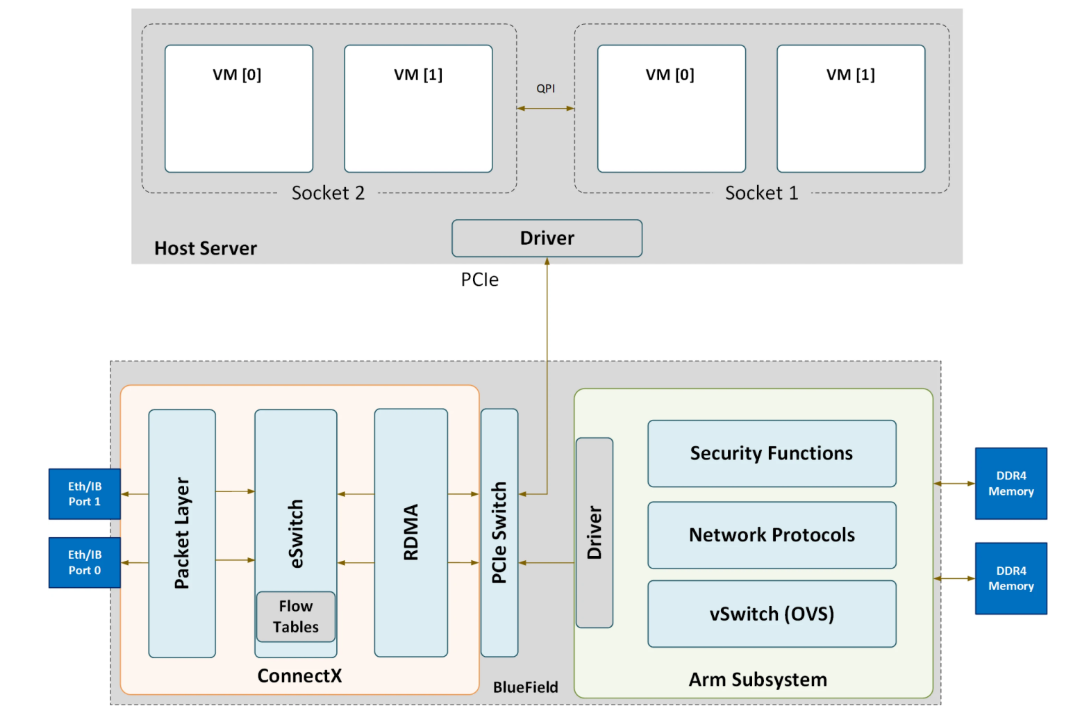

跟BCM小太阳的PS225类似，这块BF2也是arm+自家的网卡芯片结构。bf2同时向host和arm暴露网口。
网卡分为了两种模式，DPU模式和NIC模式。
当服务器与 DPU 启动时，通往主机的网络连接将被阻断，直至 DPU 上的虚拟交换机完成加载。虚拟交换机加载完成后，默认允许主机通信流量通过。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| HOST AREA : ARM AREA
+----------------------+ : +-------------------------+
| HOST | : | ARM |
| | : | +-----------+ |
| (Offload) (Slow) | : | | OVS | |
| | \ | : | +---^---|---+ |
+------+----------\----+ : | | | |
| \ : | | | |
PF0 PF1 : ECPF0| |ECPF1 |
| \ : | | |
=======|==============\===========:===============|===|===========
| \ : | |
+------v----------------\---------:---------------|---v--------+
| \ : /--------/ |
| \_______:_____/ |
| eSwitch |
+------|--------------------------:-------------------|--------+
| : |
v : v
|
向主机接口传递流量有两种方式：
- 通过 representor 代理将流量转发至主机（每份进出主机的数据包都会由 Arm 端嵌入式网络接口二次处理）；
- 向内嵌交换机推送流量卸载规则，直接放行该流量。
固件升级
抬手先检查一下固件，在线升级发现版本到24.43.1014。由于bf2新版本的固件已经转移到了BFB文件。所以要用另一种升级方法。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| # mlxfwmanager --online -u
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: BlueField2
Part Number: MBF2H332A-AENO_Ax_Bx
Description: BlueField-2 P-Series DPU 25GbE Dual-Port SFP56; PCIe Gen4 x8; Crypto Disabled; 16GB on-board DDR; 1GbE OOB management; HHHL
PSID: MT_0000000539
PCI Device Name: /dev/mst/mt41686_pciconf0
Base GUID: *****************
Base MAC: **********
Versions: Current Available
FW 24.42.1000 24.43.1014
PXE 3.7.0500 3.7.0500
UEFI 14.35.0015 14.36.0016
UEFI Virtio blk 22.4.0013 N/A
UEFI Virtio net 21.4.0013 N/A
Status: Update required
|
先去下面网址下载最新版的固件bfb
NVIDIA DOCA 3.2.0 LTS Downloads
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
| # bfb-install --bfb bf-fwbundle-3.2.0-113_25.10-prod.bfb --rshim rshim0
Checking if local host has root access...
Checking if rshim driver is running locally...
Pushing bfb
693MiB 0:01:52 [6.19MiB/s] [ <=> ]
Collecting BlueField booting status. Press Ctrl+C to stop…
INFO[BL2]: start
INFO[BL2]: boot mode (rshim)
INFO[BL2]: DDR POST passed
INFO[BL2]: UEFI loaded
INFO[BL31]: start
INFO[BL31]: lifecycle GA Non-Secured
INFO[BL31]: runtime
INFO[UEFI]: UPVS valid
INFO[UEFI]: eMMC init
INFO[UEFI]: eMMC probed
INFO[UEFI]: PMI: updates started
INFO[UEFI]: PMI: total updates: 1
INFO[UEFI]: PMI: updates completed, status 0
INFO[UEFI]: PCIe enum start
INFO[UEFI]: PCIe enum end
INFO[UEFI]: UEFI Secure Boot (disabled)
INFO[UEFI]: Redfish enabled
INFO[UEFI]: exit Boot Service
INFO[MISC]: Updating NIC firmware...
INFO[MISC]: NIC firmware update done: 24.47.1026
INFO[MISC]: Installation finished
# mlxfwmanager --online -u
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: BlueField2
Part Number: MBF2H332A-AENO_Ax_Bx
Description: BlueField-2 P-Series DPU 25GbE Dual-Port SFP56; PCIe Gen4 x8; Crypto Disabled; 16GB on-board DDR; 1GbE OOB management; HHHL
PSID: MT_0000000539
PCI Device Name: /dev/mst/mt41686_pciconf0
Base GUID: *****************
Base MAC: **********
Versions: Current Available
FW 24.47.1026 24.43.1014
FW (Running) 24.42.1000 N/A
PXE 3.7.0500 3.7.0500
UEFI 14.35.0015 14.36.0016
UEFI Virtio blk 22.4.0013 N/A
UEFI Virtio net 21.4.0013 N/A
Status: Up to date
|
